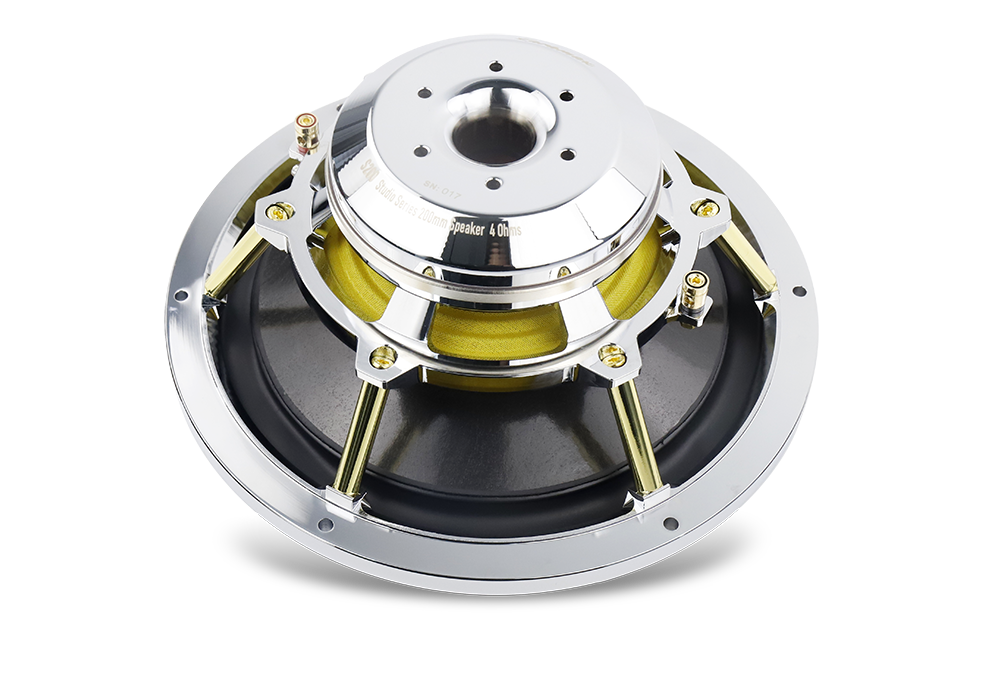

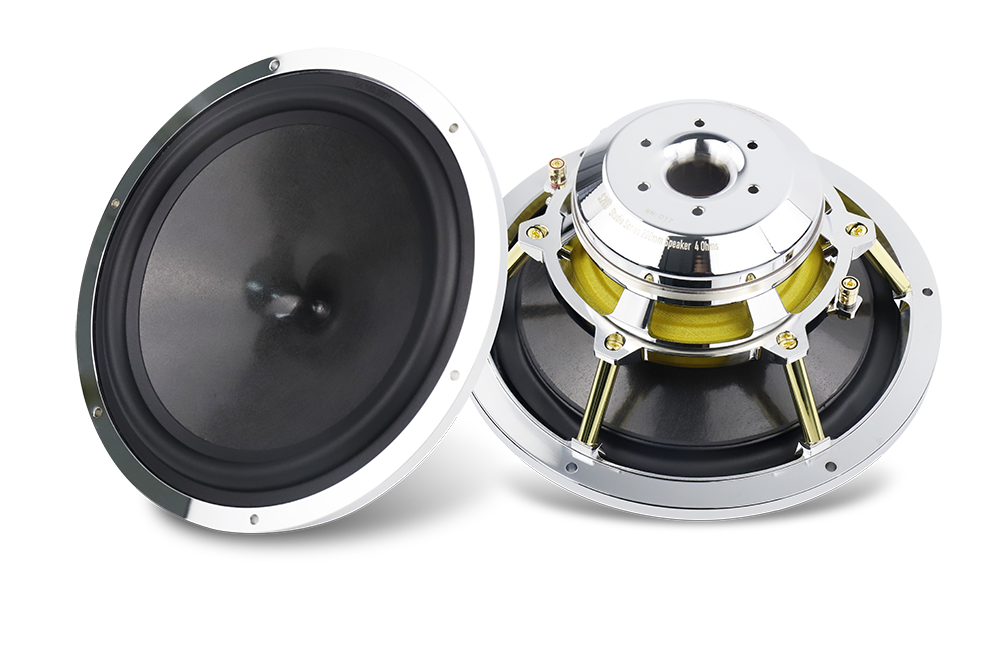

STUDIO 200

Studio Series 200mm mid-bass woofer

Specification:

Nominal Impedance: 4 Ohms

DC Resistance (Rdc) (Zmin): 3.1 Ohms

Sensitivity (2,83 V / 1m) : 90.2dB

Resonance Frequency (Fs) : 42.5dB

Frequency Response ( -6dB): 38Hz-5kHz

Voice Coil Diameter: 38mm

Qts: 0.41

Vas: 30.7 Litres

Effective Piston Area: 254.3cm2

R. Frequency Response: 42Hz - 3kHz

Crossover from (2-way filter 12dB/Oct.) : 2.2kHz

Power Handling, long term: 100 Watts

Power Handling, short term: 150 Watts

Total Weight: 1.95kg

Installing Depth: 75mm




A primary objective in the development of the Larkmax automotive loudspeaker models was to combine the qualitative performance attributes and off-axis response of the company’s award-winning home audio models with the excellent near field response of the company’s dedicated studio monitors into a range of mobile audio products that would be ideally suited to bring the advanced Larkmax sound quality into the vehicle.

Larkmax Audio has become one of the world’s leading high-end audio companies by staying true to the company vision of natural, uncompromised sound quality. The company’s extreme focus and dedication as a specialist loudspeaker manufacturer is embodied in the diverse range of high-performance loudspeaker products.

The Larkmax car audioloudspeakers follow in the longstanding tradition of the company’s renowned home audio driver designs.

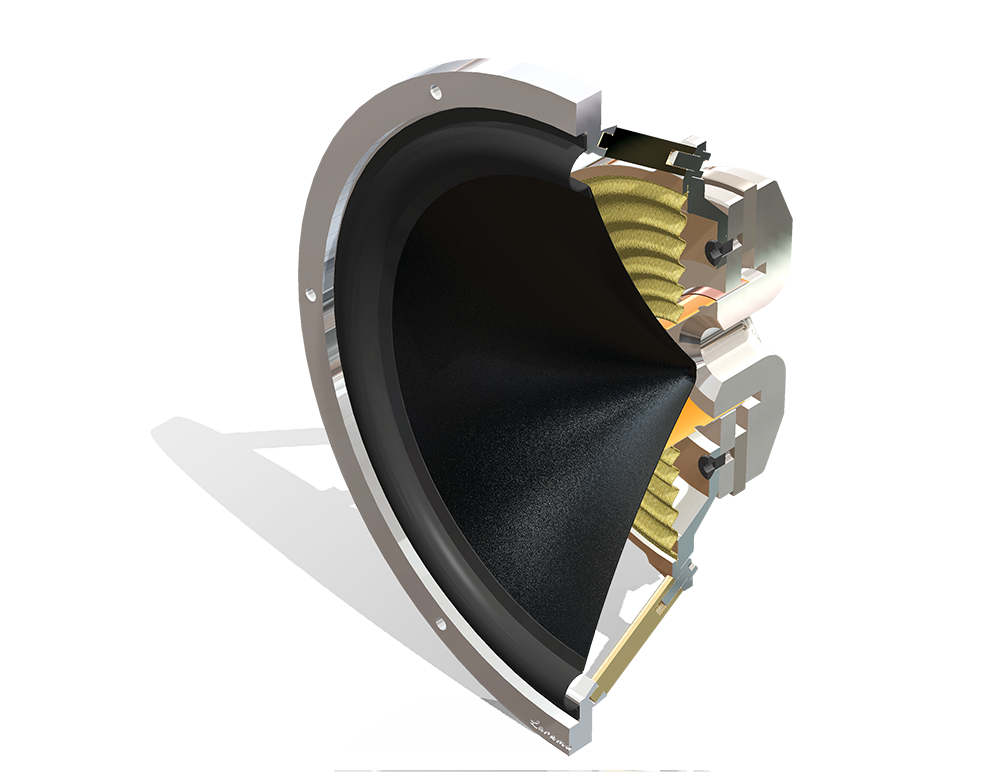

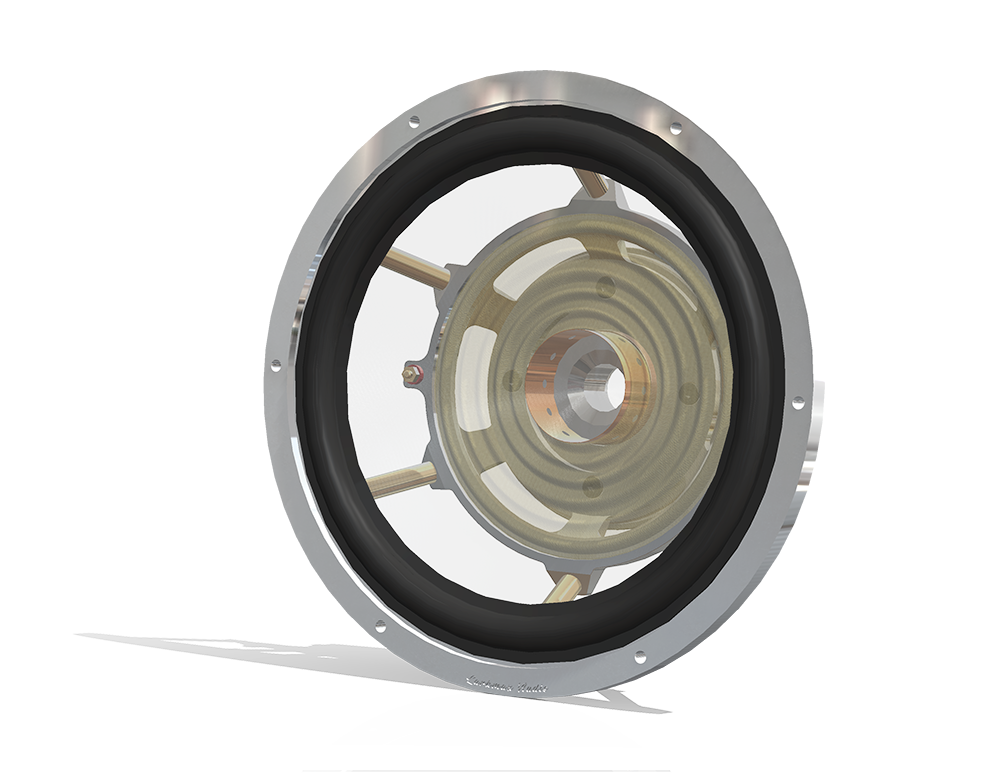

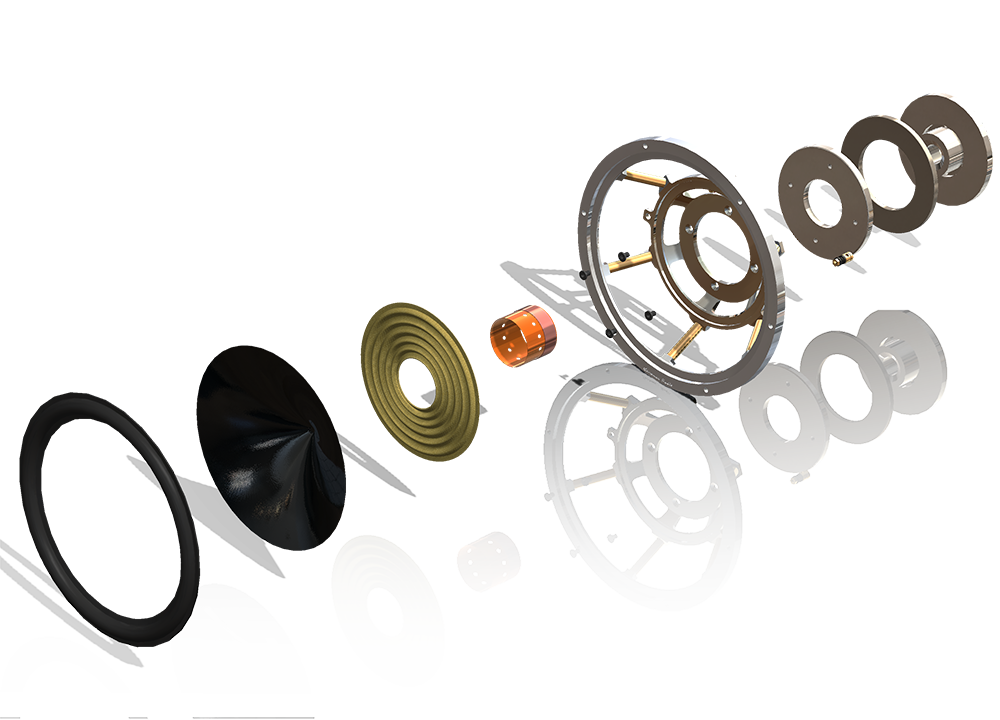

Similar to the famous M series loudspeaker systems in principle, the new Studio 200 is a 210mm (8-inch) diameter with Full Apex™ Rohacell© diaphragm design intended for high performance three- and four-way audio systems. As typical of all Larkmax audio Studio series midbass units, the Studio 200 features a large diameter aluminum voice coil with a NdFeB motor. Aluminium has proven to be an ideal material for Larkmax’s oversized voice coils due to its extremely low mass, which in turn allows a larger coil diameter and more windings as compared to conventional designs. The heat produced by the voice coil is dissipated to the magnet system with the help of excellent ventilation motor structure. The precisely optimized basket geometry and the low mass of the internal moving parts ensure a very transparent and detailed reproduction of all frequencies.


Specification:

Nominal Impedance: 4 Ohms

DC Resistance (Rdc) (Zmin): 3.1 Ohms

Sensitivity (2,83 V / 1m) : 90.2dB

Resonance Frequency (Fs) : 42.5dB

Frequency Response ( -6dB): 38Hz-5kHz

Voice Coil Diameter: 38mm

Qts: 0.41

Vas: 30.7 Litres

Effective Piston Area: 254.3cm2

R. Frequency Response: 42Hz - 3kHz

Crossover from (2-way filter 12dB/Oct.) : 2.2kHz

Power Handling, long term: 100 Watts

Power Handling, short term: 150 Watts

Total Weight: 1.95kg

Installing Depth: 75mm
