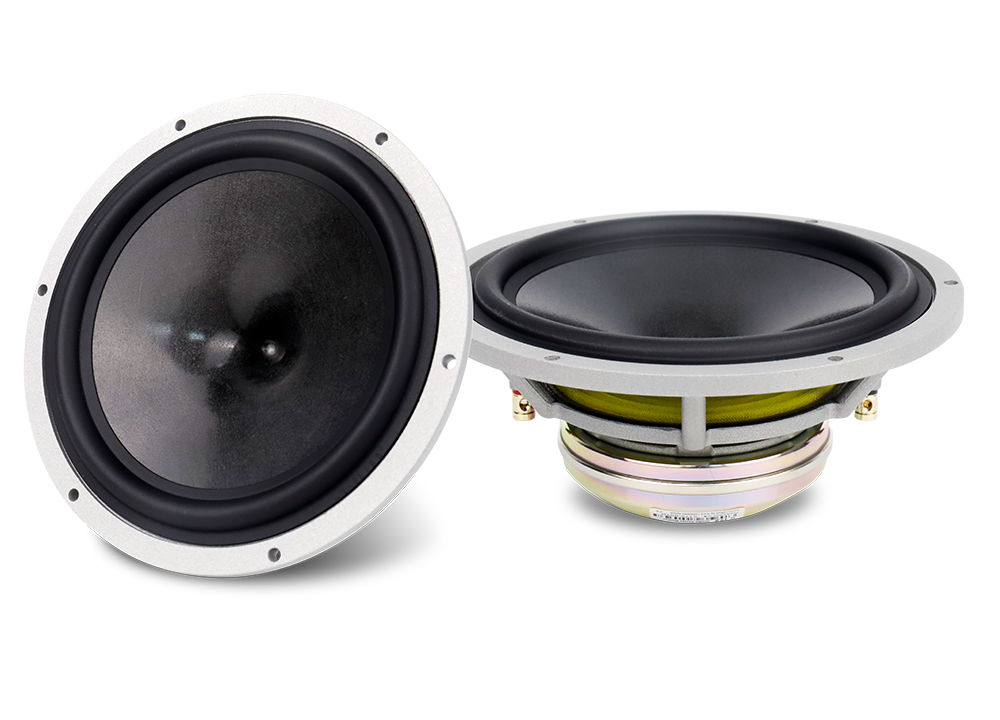

The Studio Master 172 is a true State-of-Art speaker in every way with its very unique 170mm Full Apex™ Rohacell© diaphragm driver, producing spectacular sound clarity, natural tones and resolution of detail that engages the listener like no other. Its large 1.5-inch Voice Coil and Neo-magnet drivers are capable of bone crushing bass with powerful impact with subtle overtones and superb focus. The S172 can image with pin point accuracy enhanced by a very low noise floor. The speed of all the drivers will astound with a dynamic range that reaches real levels of impact at the peaks of music. Overall, the Studio Master is a very natural sounding speaker with excellent micro-dynamics, superior resolution of detail and spectacular realism.
This speaker does it all! After all, “It’s all about the art of sound.”

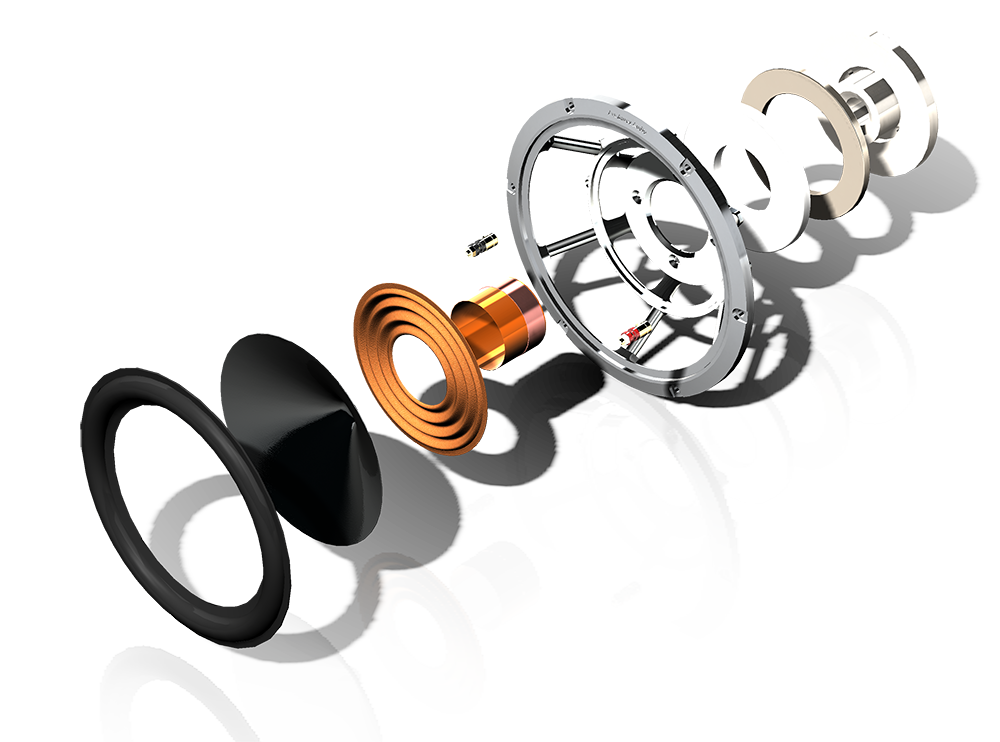

State of Art automotive speaker
Full Apex™ Rohacell© diaphragm
Carbon fiber graphite composite CFGC material
38mm Kapton voice coil for high power handling capacity
Ventilation magnetic structure design

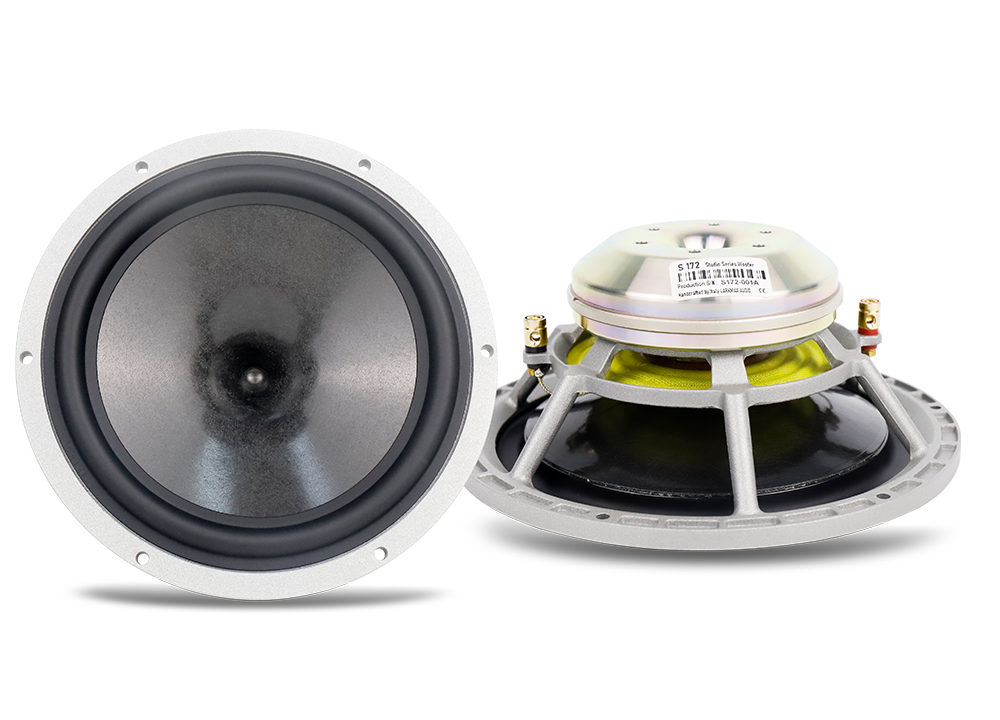

Lower Resonance Die Casting Aluminium Basket
Lowest manufacturing tolerances and pairing production
Specifications
Nominal Impedance: 4 Ohms
DC Resistance (Rdc) (Zmin): 2.7 Ohms
Sensitivity (2,83 V / 1m) : 90.1 dB
Resonance Frequency (Fs) : 53 Hz
Frequency Response ( -6dB) : 45Hz - 4 kHz
Voice Coil Diameter: 38mm
Qts: 0.373
Vas: 17.594 Liters
Effective Piston Area: 136.8 cm²
Recommended Frequency Response : 50Hz - 2.8 kHz
2-Way Crossover from (filter 12dB/Oct.): 2.4 kHz
Power Handling, long term: 100 W
Power Handling, short term: 200 W
Total Weight : 1.8 kg
