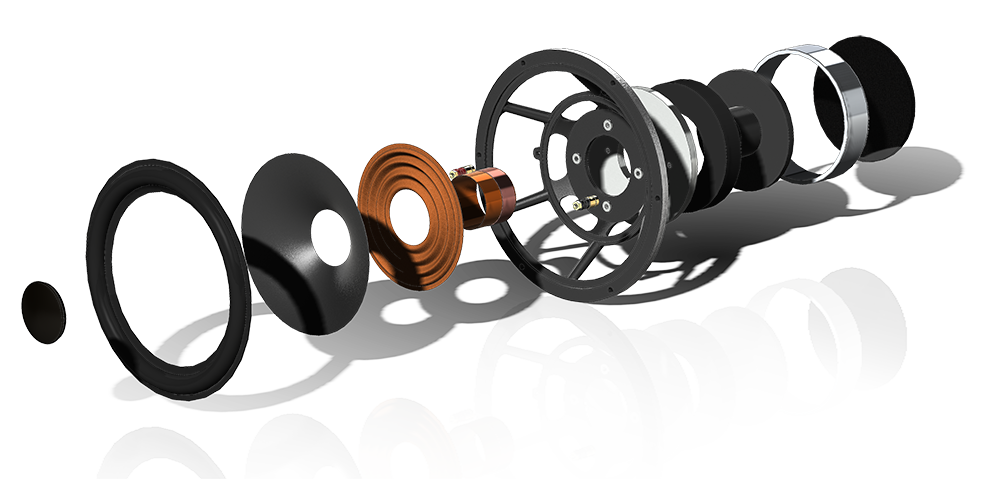

Larkmax Audio One of the most successful speakers, Reference series, still very much loved by her owners since 2005, gets reinvented and the car audio reference 172 is born. Incorporating the new Larkmax Audio driver technology, the R172 brings more improvements to the macro- and micro dynamics never experienced before and is truly a jewel among-st all car audio speakers. The Reference 172 can be combined into different component kit with Larkmax Audio AMT tweeters.All these meticulously innovations result in an exceptional musicality, a rock-solid image focus and a smooth response over a wide sweet spot.

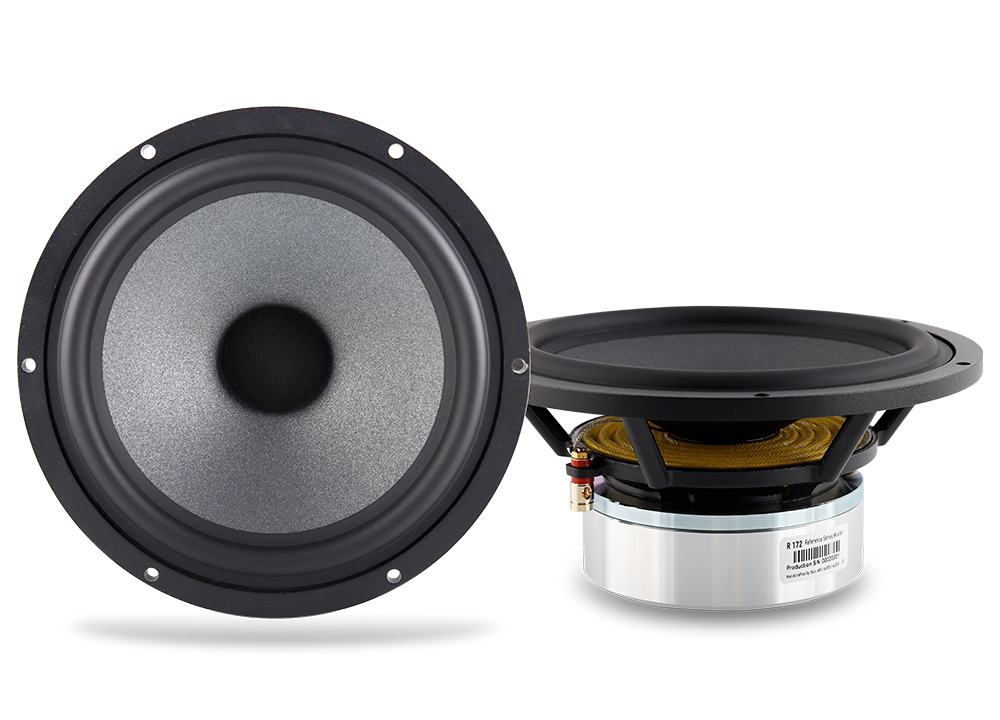

Hi-end Car Audio Mid-Bass
Mid-woofer with sturdy aluminum die-cast basket
PGC paper pulp based graphite composite diaphragm
Large voice coil diameter for high power handling capacity.
T-shaped magnet system gives low modulation distortion.
Lowest manufacturing tolerances and exclusive use of selected materials
Specifications
Nominal Impedance: 4 Ohms
DC Resistance (Rdc) (Zmin): 3.2 Ohms
Sensitivity (2,83 V / 1m) : 88.6 dB
Resonance Frequency (Fs) : 50 Hz
Frequency Response ( -6dB) : 45Hz - 5.5 kHz
Voice Coil Diameter: 30mm
Qts: 0.462
Vas: 18.267 Liters
Effective Piston Area: 136.8 cm²
Recommended Frequency Response : 50Hz - 3 kHz
2-Way Crossover from (filter 12dB/Oct.): 2.8 kHz
Power Handling, long term: 60 W
Power Handling, short term: 150W
Total Weight : 1.8kg
