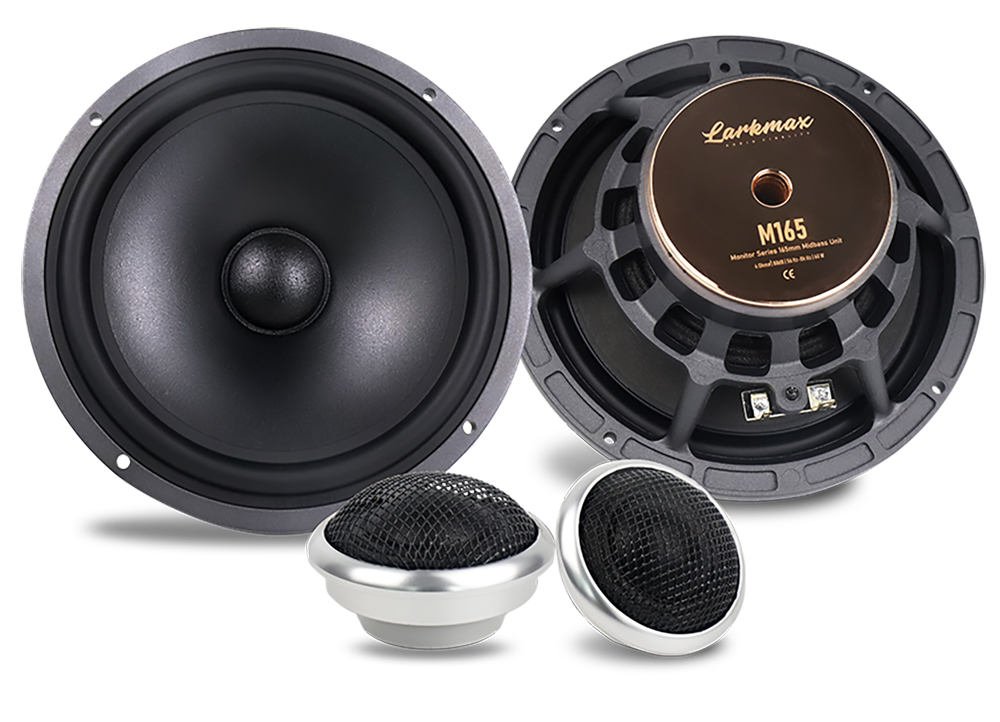

Monitor 6 car audio systems let you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive Coating Paper cone for amazing frequency response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the Silk-fabric membrane, ensure an extended high frequency range. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.

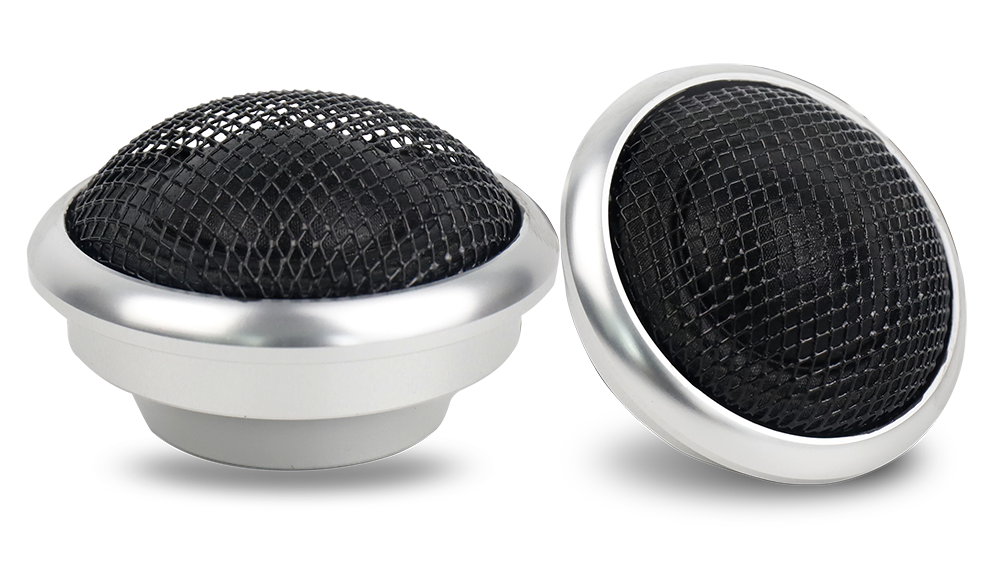

Monitor 25 tweeter
25 mm Coating Silk-fabric dome tweeter.
High efficiency annular acoustic lens.
High energy neodymium magnet.
Rear Chamber and damping material; controlling acoustic resonances insuring clear, high frequency tones.
Monitor 165 6-inch woofer
with a large motor assembly for mobile voice coil control.
Pure copper voice coil, wound on conex former, for maximum lightness.
Exclusive Coating Paper cone for best frequency response, clear mid-high frequency detail and powerful bass.
TPU surround, for wide excursion and resonance damping.
DIN size PPS basket protected by abrasion-proof dust paint.
Golden-plated, high current terminals.
Silver-plated lead wires for maximum reliability and conductivity.
Epoxy glue for basket and motor system provides perfect coupling.
Low carbon content plates for maximum magnetic permeability and high heat dissipation.
Specifications
Power Handling - Peak: 120W
Power Handling - Continuous: 60W
Impedance: 4 Ohms
Frequency response: 65Hz - 23kHz
Sensitivity: 89.8dB SPL
Woofer size: 165 mm
Tweeter size: 25 mm
Woofer magnet: High density flux ferrite
Tweeter magnet: Neodymium
Woofer cone: Water-repellent pressed paper
Tweeter dome: Silk-fabric
Crossover type: Tweeter Hi-Pass
Crossover cut off: 4 kHz @ 6 dB Oct.
