The Larkmax Audio Moitor 8 inch 3-way speaker systems brings impressive performance to the car audio category. During our testing, these speakers delivered clear, powerful balance full range frequencies with minimal distortion even at higher volume levels. The high performance design makes these speakers suitable for both OEM or DSP amplifier system and high-powered systems.

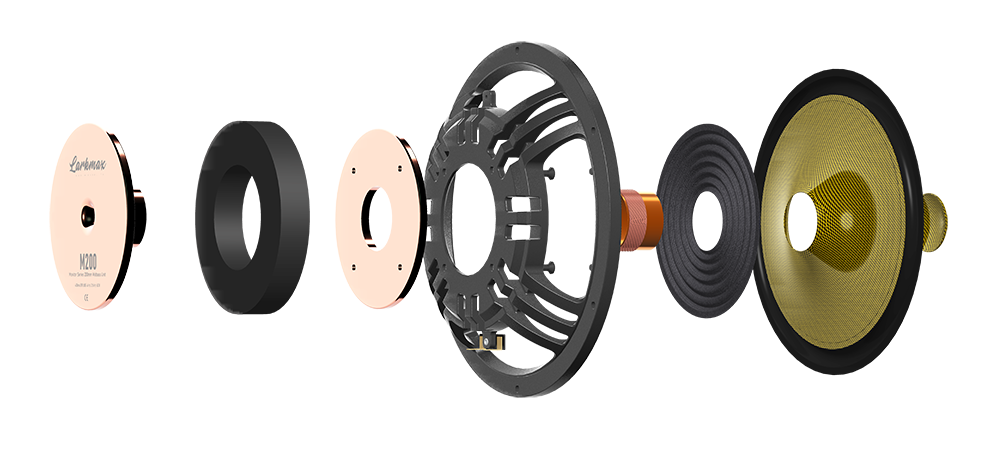

The M200 - 8 inch midbass units use butyl rubber surround and long-fibre paper cone allow these speakers to delivers rich details and a full & mellow sound quality. These speakers excel with genres that feature prominent mid-bass elements like rock, country, and classical music. The tight, controlled sound makes them excellent candidates for three-way systems where they can focus exclusively on midbass duties. Installation proved straightforward with standard mounting dimensions, though at 58.5mm depth, you’ll install it on car doors and only need to ensure adequate clearance. The build quality feels substantial with a casting aluminium basket supporting the assembly.
The core of the M90S mid-range is a manually coated poly-glass fiber cone with light damping treatment, and mechanically matching suspension result in an unusually smooth Mid-range response. M90S compact size allows versatile and high-performance installations.
The tweeter M25 is a 25 mm Coating Silk-fabric dome tweeter.High efficiency annular acoustic lens and High energy neodymium magnet. Rear Chamber and damping material; controlling acoustic resonances insuring clear, high frequency tones.
Specifications
Power Handling - Peak: 120W
Power Handling - Continuous: 60W
Impedance: 4Ω
Frequency response: 45-23kHz
Sensitivity: 88.5dB SPL
Woofer size: 210 mm
Midrange size: 90mm
Tweeter size: 25 mm
Woofer magnet: High density flux ferrite
Tweeter & midrange unit magnet: Neodymium
Woofer cone: Water-repellent pressed paper
Midrange unit cone: manually coated poly-glass fiber cone
Tweeter dome: Silk-fabric
Crossover type: Tweeter Hi-Pass
Crossover cut off: 4 kHz @ 6 dB Oct.

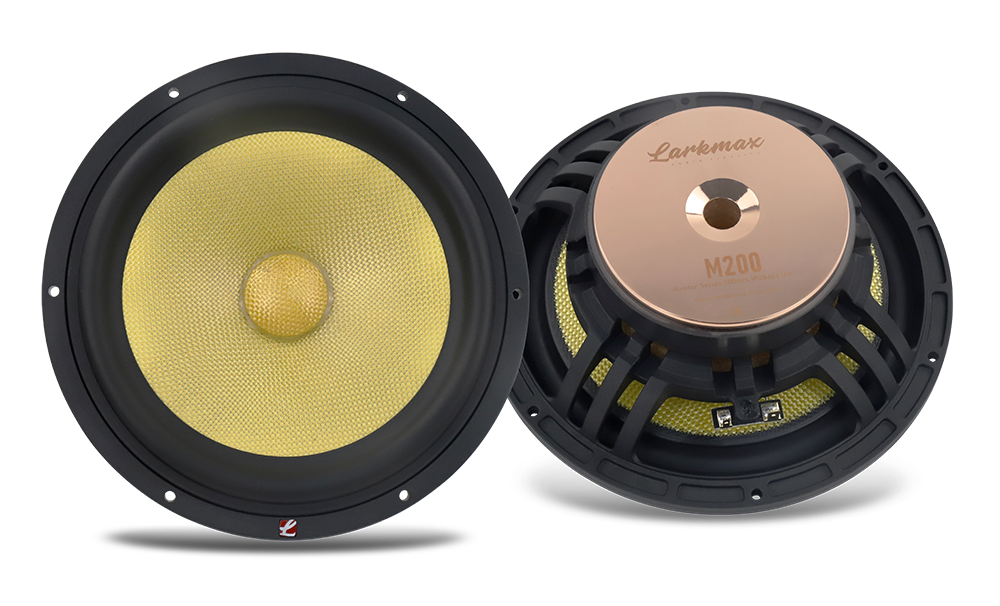

M 200
Nominal Impedance: 4 Ohms
DC Resistance (Rdc) (Zmin): 3.1 Ohms
Sensitivity (2,83 V / 1m) : 88.5dB
Resonance Frequency (Fs) : 45dB
Frequency Response ( -6dB): 40Hz-5kHz
Voice Coil Diameter: 35mm
Qts: 0.45
Vas: 37.5 Litres
Effective Piston Area: 254.3cm2
R. Frequency Response: 45Hz - 3kHz
Crossover from (2-way filter 12dB/Oct.) : 2.2kHz
Power Handling, long term: 60 Watts
Power Handling, short term: 100 Watts
Total Weight: 1.86kg
Installing Depth: 58.5mm
