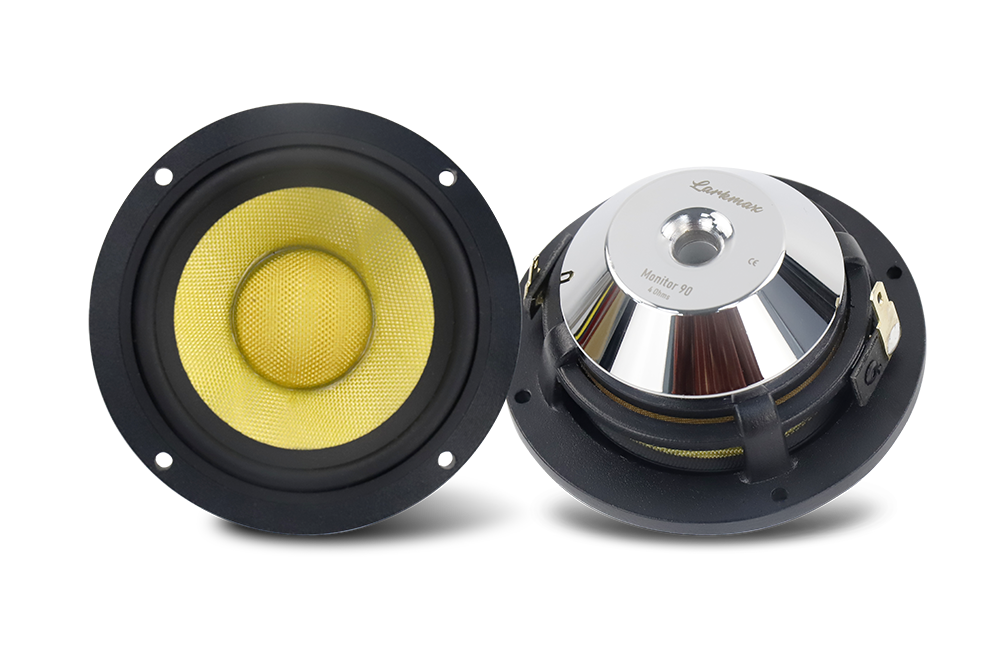

The M90 is an 3” Mid-range driver offering an extraordinary performance and sound clarity.

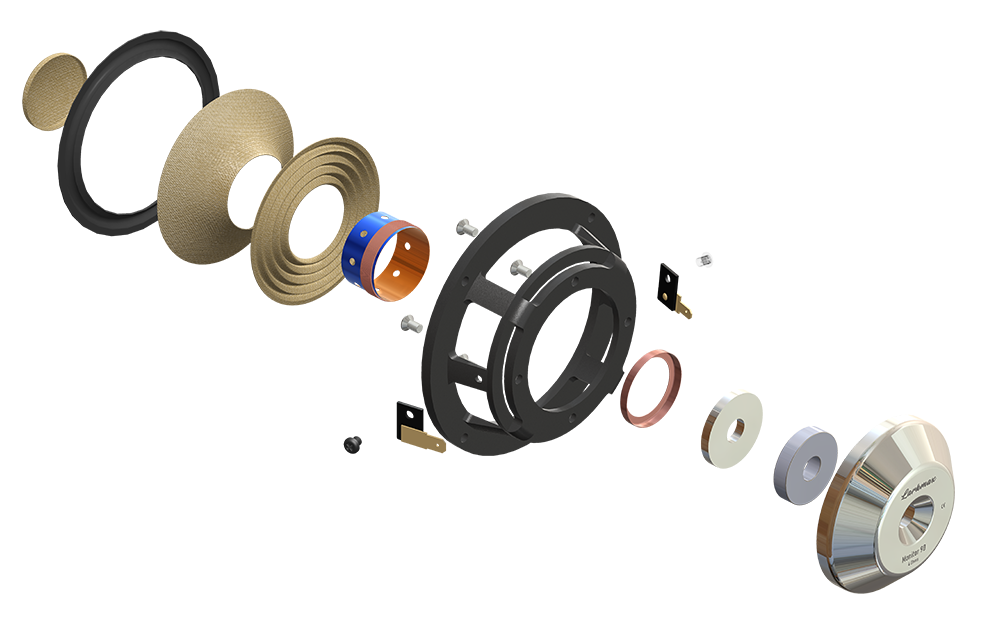

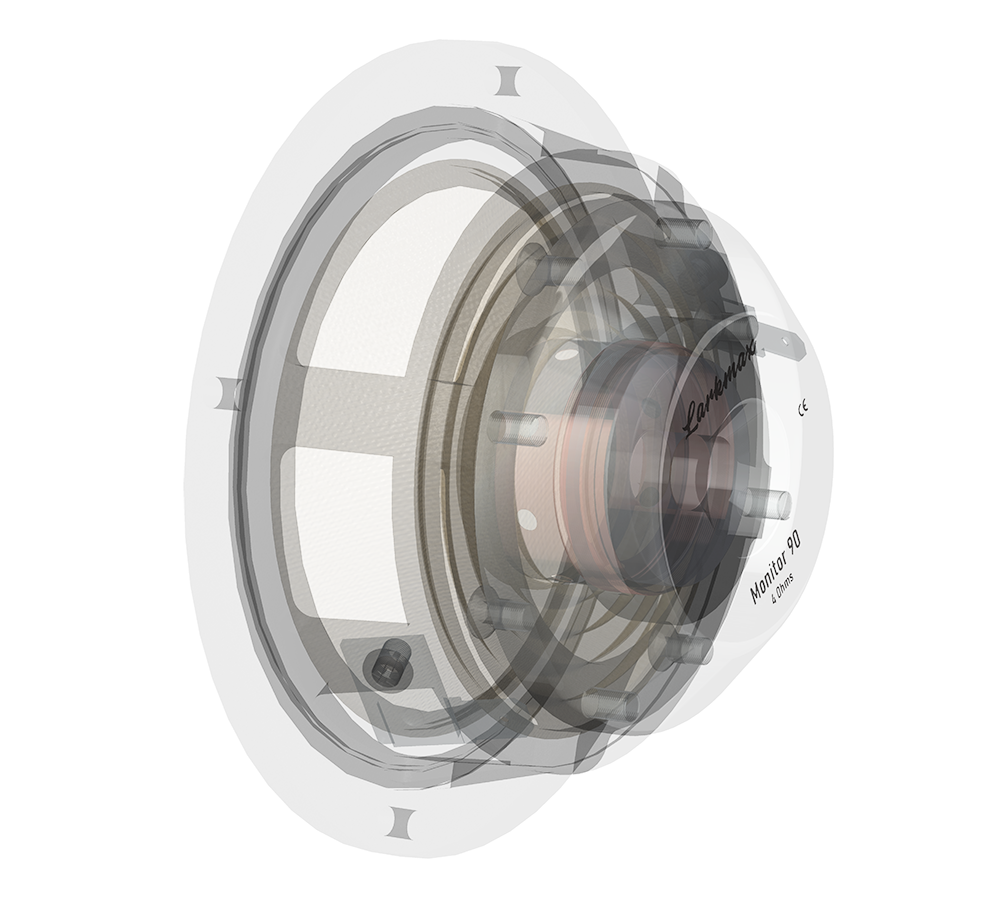

New Glass-fibre cone, excellent internal damping together with perfectly matched moving parts gives a smooth, extended frequency response. The large, open weave fabric spider reflects very little acoustic energy to the cone, and offers excellent stiffness linearity. A stiff and stable CNC aluminum chassis keeps the critical components in perfect alignment. The pole piece is prolonged forwards and equipped with a deep drawn copper cap to ensure excellent linearity in the force factor and coil inductance. Small size combined with an excellent performance makes this driver the perfect election for any application where limited space is a critical parameter.
- Hi end class automotive mid-range speaker
- Glass-fibre composite diaphragm
- High stroke suspension transducer design and Small Vas designed.
- 25mm Kapton voice coil for high power handling capacity
- Ventilation magnetic structure design
- Lower Resonance CNC Aluminum Basket
- Lowest manufacturing tolerances and pairing production
Nominal Impedance: 4 Ohms
DC Resistance (Rdc) (Zmin): 3.0 Ohms
Sensitivity (2,83 V / 1m) : 88.5dB
Resonance Frequency (Fs) : 105dB

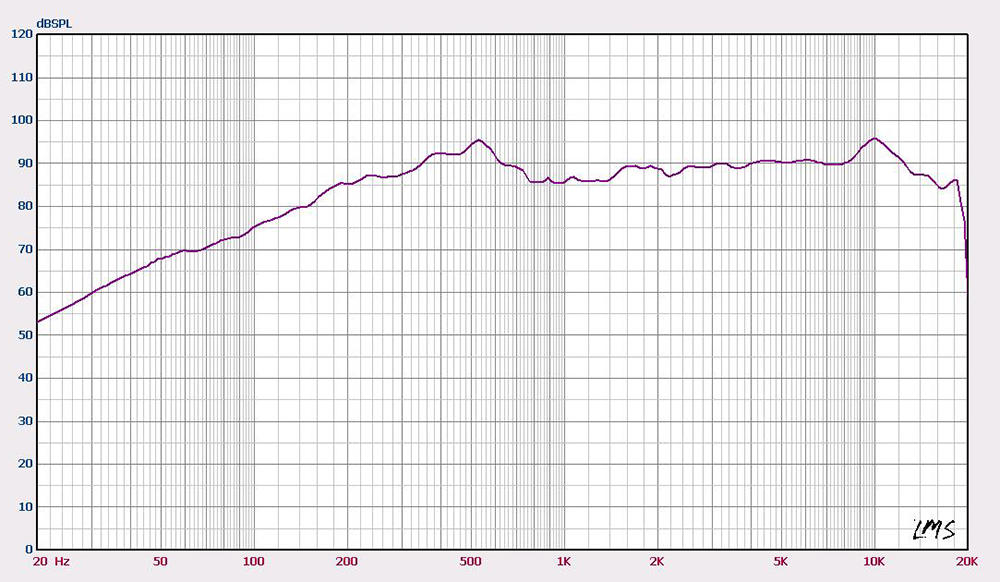

Frequency Response ( -6dB): 120Hz-18kHz
Voice Coil Diameter: 25mm
Qts: 0.39
Vas: 1.25 Litres
Effective Piston Area: 3.51cm2
R. Frequency Response: 200Hz - 5kHz
Crossover from (2-way filter 12dB/Oct.) : 3.3kHz
Power Handling, long term: 30 Watts
Power Handling, short term: 60 Watts
Total Weight: 565g
