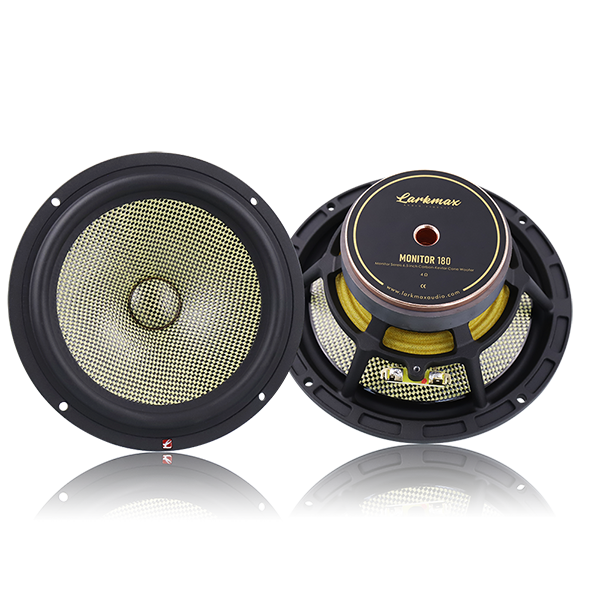

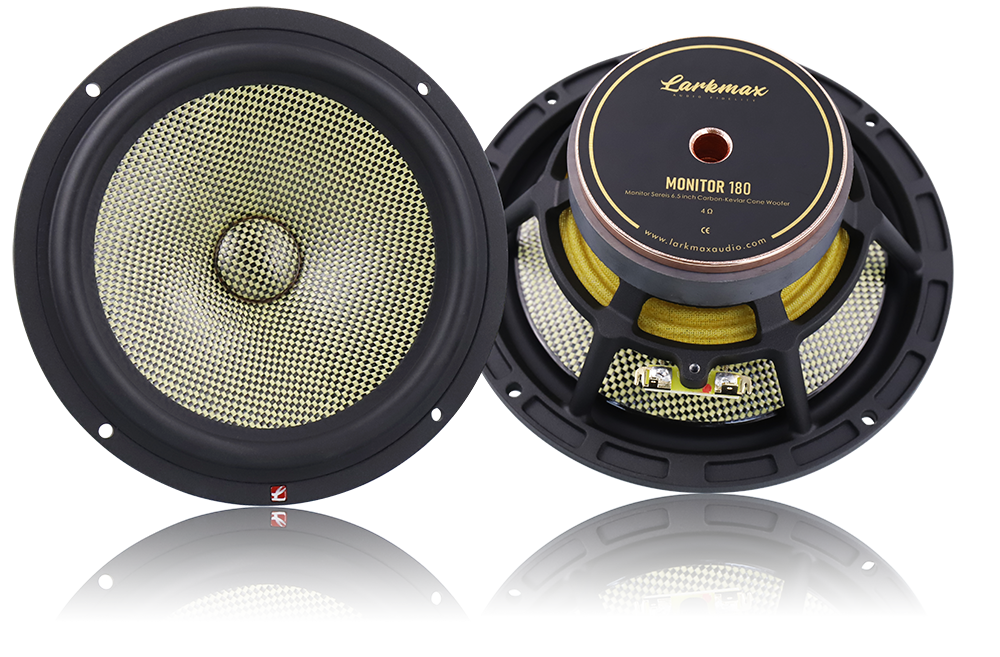

M180

Monitor Series 7 inch Mid-bass

Nominal Impedance: 4 Ohms

DC Resistance (Rdc) (Zmin): 3.4 Ohms

Sensitivity (2,83 V / 1m) : 88.6 dB

Resonance Frequency (Fs) : 58 Hz

Frequency Response ( -6dB) : 50Hz - 5 kHz

Voice Coil Diameter: 25mm

Qts: 0.59

Vas: 14.36 Liters

Effective Piston Area: 136.8 cm²

Recommended Frequency Response : 60Hz - 3 kHz

2-way Crossover from (filter 12dB/Oct.): 2.8 kHz

Power Handling, long term: 50

Power Handling, short term: 120

Total Weight : 1.6kg

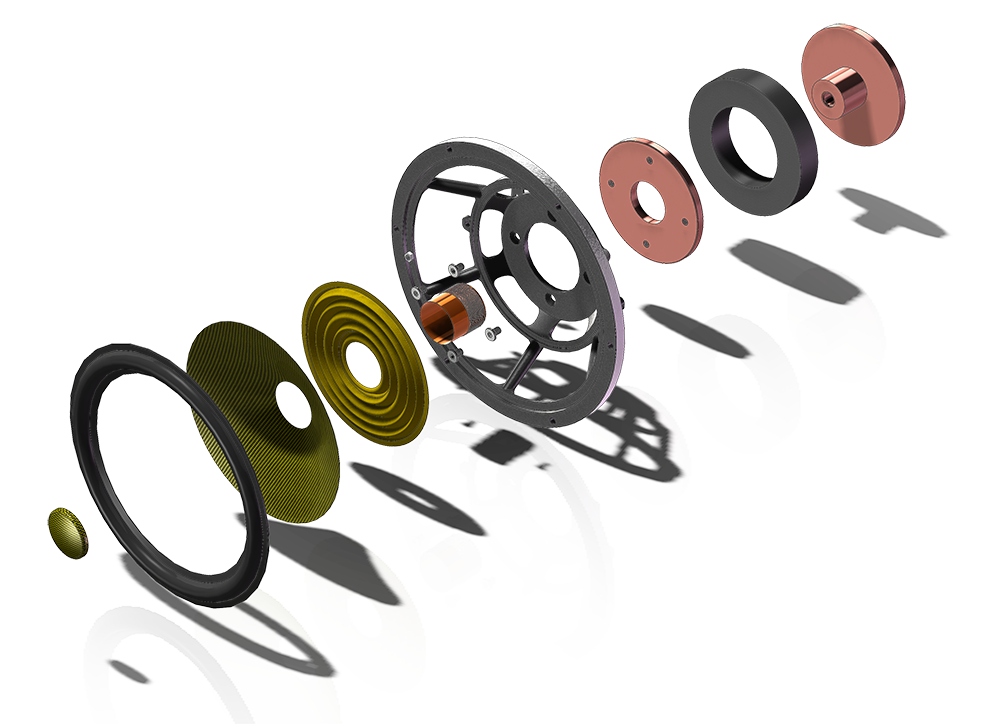

If you are very demanding and expect an outstanding musical experience, the perfect choice is the Larkmax Audio Monitor speaker system. The newly developed 3 generation system will fulfill your expectations. The unique tonal balance and dynamics M180 is achieved by the exclusive use of high end components including, a specially interwoven formed Carbon-Kevlar fibre cone and a massive cast aluminum basket on the woofer, A relatively large voice coil diameter results in high power handling capacity.The magnet system with a T-shaped cross section of the pole piece gives low modulation distortion.. This attention to detail makes the difference!






New cone of interwoven Kevlar/Carbon fibers, a new reference for the combination of low mass, rigidness, and damping - highly beneficial properties for midrange reproduction

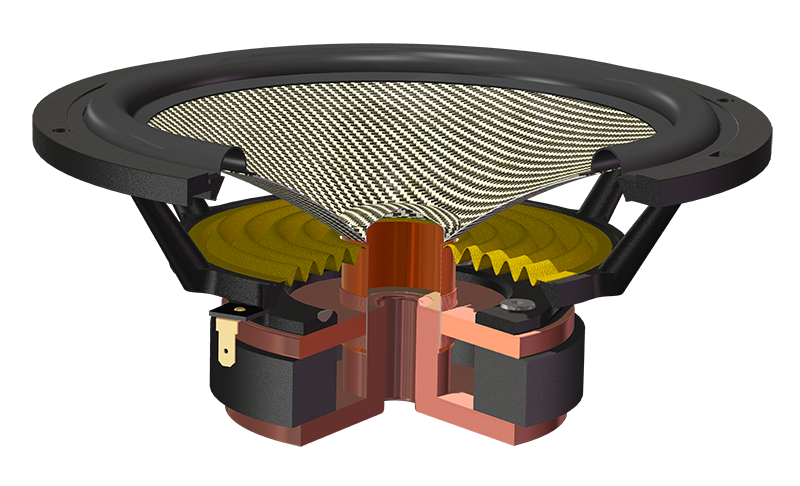

Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion

Vented, the same material center dome for reduced compression

Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position

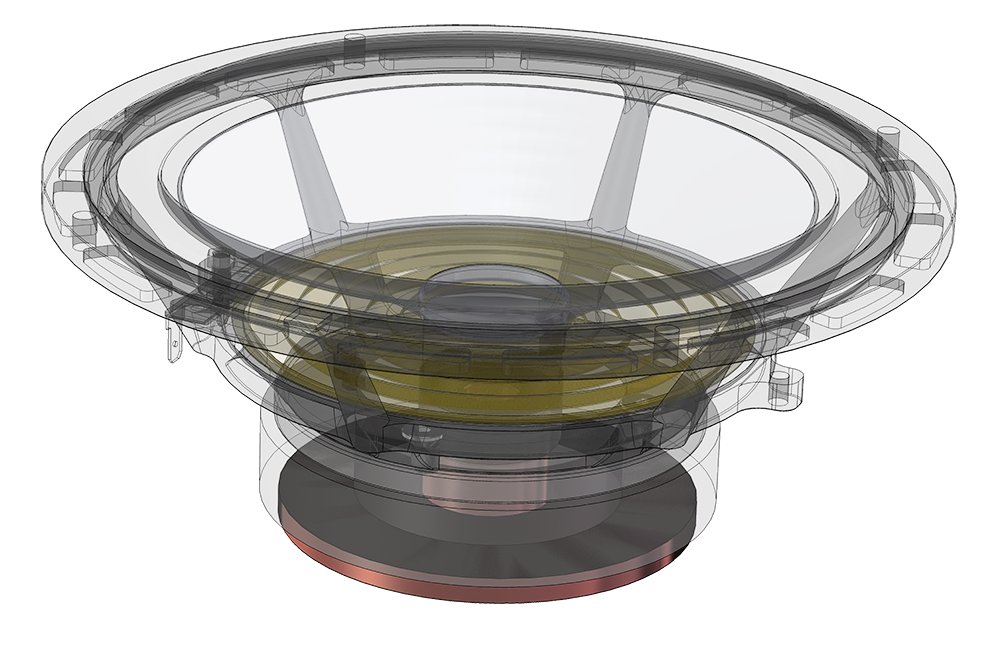

Rigid die cast aluminum chassis with extensive venting for lower air flow speed reducing audible distortion

Vented voice coil former for reduced distortion and compression

Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details

Large motor with 1” voice coil diameter for better control and power handling

Built-in aluminum field-stabilizing ring for reduced distortion at high levels

Low-loss suspension (high Qm) for better reproduction of details and dynamics

Rose-golden plated motor parts for better heat transfer to the surrounding air

Conex spider for better durability under extreme conditions

Gold plated terminals to ensure long-term trouble free connection.



Specifications

Nominal Impedance: 4 Ohms

DC Resistance (Rdc) (Zmin): 3.4 Ohms

Sensitivity (2,83 V / 1m) : 88.6 dB

Resonance Frequency (Fs) : 58 Hz

Frequency Response ( -6dB) : 50Hz - 5 kHz

Voice Coil Diameter: 25mm

Qts: 0.59

Vas: 14.36 Liters

Effective Piston Area: 136.8 cm²

Recommended Frequency Response : 60Hz - 3 kHz

2-way Crossover from (filter 12dB/Oct.): 2.8 kHz

Power Handling, long term: 50

Power Handling, short term: 120

Total Weight : 1.6kg
