Larkmax Audio AMT series Tweeter feature a dynamic sound, an excellent transient response, a wide spread directivity, a high efficiency and a low harmonic distortion. For AMT 90s, the manufacturing process for each tweeter has been undertaken to an even higher standard of precision, a strong magnetic field lowers distortion and inter-modulation while a special wave-guide is used to reach lower crossover frequencies, and offers a slightly larger vertical radiation angle. So it's ideally suited for situations with a short listening distance Specially in a car. With the decisive quality features of the Ars Aures diaphragm: Exceptionally low K3 / K5 distortion data, a truly powerful music performance within the entire application range and, at the same time, the fine micro-dynamics and richness of music details that distinguish all Larkmax Audio AMT tweeter's.

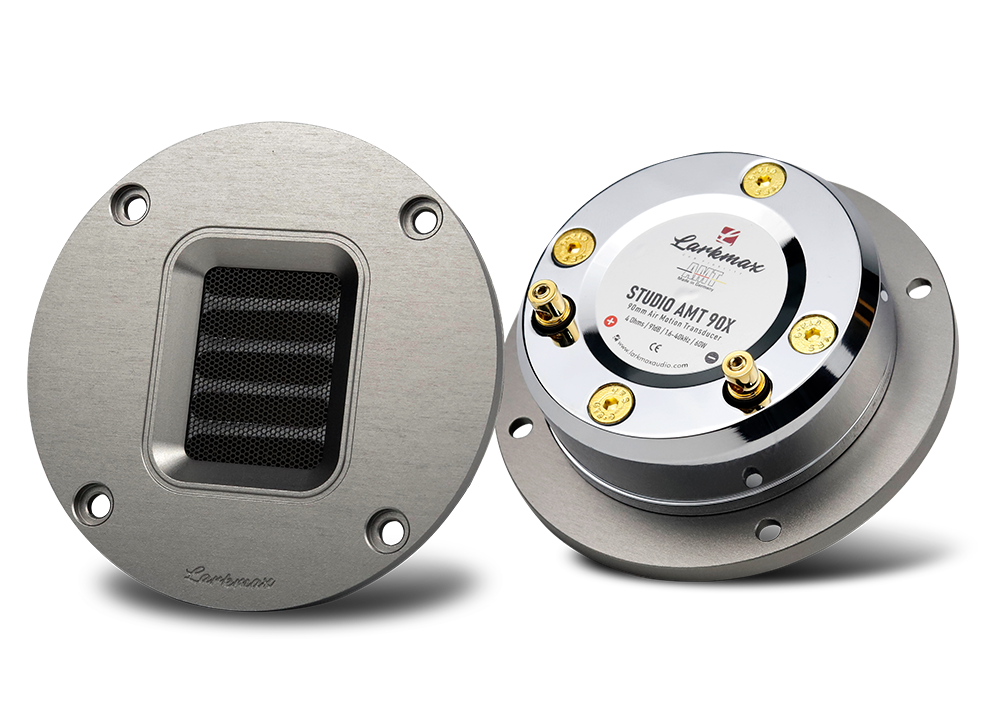

Limited Edition High-end Air Motion Transformer tweeter
High-performance neodymium magnet system
Fine, dynamic and brilliant reproduction of the high frequencies
Folded cone made of Kapton and aluminium
Frequency Response from 2,200 Hz to 40kHz
Robust aluminium front panel
Chrome plated rear cover
Golden Plated Terminal
Matched pairs Production Handmade in Berlin Germany
Specifications
Nominal Impedance: 4 Ohms
DC Resistance (Rdc) (Zmin): 3.6 Ohms
Sensitivity (2,83 V / 1m) : 91 dB
Resonance Frequency (FS) : 2150 Hz
Frequency Response ( -6dB) : 1.6 kHz - 40 kHz
Crossover from (filter 12dB/6dB/Oct.): 3.0 kHz / 4.0 kHz
Nominal Frequency Range: 2.5 kHz - 40 kHz
Power Handling, long term:30W
Power Handling, short term:60W
Effective Piston Area: 13.5cm²
Total Weight: 0.25kg
