The Larkmax Audio’s STUDIO SUPER MIDRANGE 100 is a 67mm dome midrange driver that delivers exceptional sonic performance for CAR AUDIO applications. This premium drivers are designed to provide accurate and detailed midrange reproduction, making it an essential component for any high-end car audio system.
The SM 100X features a 67mm dome driver with a powerful neodymium magnet system, ensuring efficient power transfer and dynamic response. The dome material is engineered from a proprietary blend of advanced polymers, providing excellent frequency response and dispersion characteristics. This results in a midrange driver that delivers clear, articulate sound with minimal distortion and impressive detail. The driver's measured frequency response is from 250 Hz to 5 kHz, The driver's impedance is nominal 4 ohms, making it easy to integrate into a wide range of car audio systems.
The SM 100X also boasts impressive sensitivity, with a measured SPL (Sound Pressure Level) of 88.5 dB at 1 watt/1 meter. This high sensitivity allows for lower power requirements, reducing thermal stress and extending the driver's lifespan.The driver's dispersion characteristics are also noteworthy, with a measured horizontal and vertical dispersion of 110 degrees and 60 degrees, respectively. This wide dispersion angle ensures even coverage and accurate imaging, making the SM 100X an ideal choice for a variety of monitoring applications.

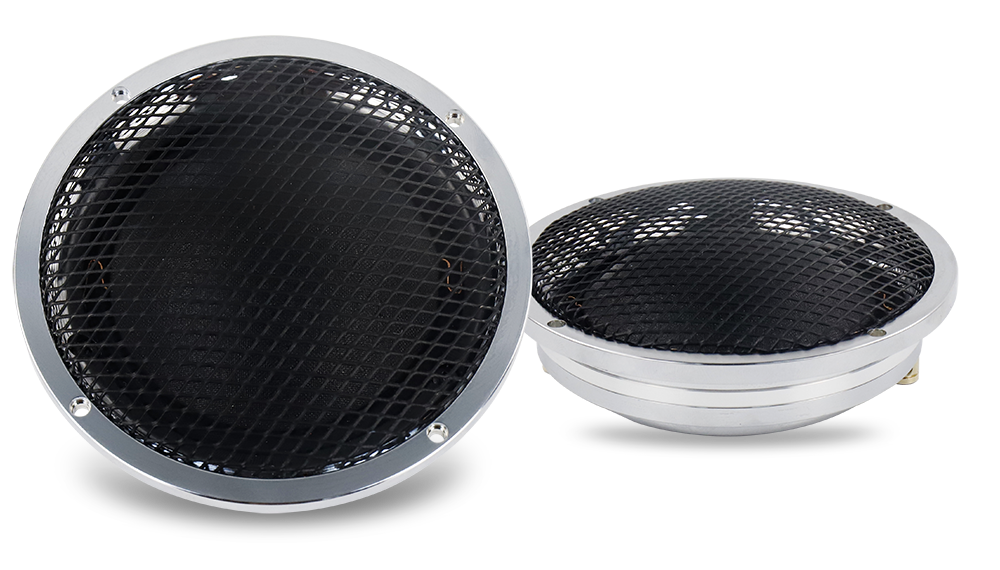

The Larkmax Audio SM 100X is housed in a compact self-contained enclosure with a vented pole piece and damped rear chamber. It includes an integrated protective grille, and requires no additional airspace for installation. It thus may easily be integrated into a wide range of install applications and locations, including A-pillar, in-dash, in-door or rear deck mount placement. So, It is a meticulously engineered midrange driver that delivers unparalleled performance and sonic accuracy. Its advanced design, exceptional SPL, and wide dispersion angle make it a must-have component for any Hi-end car audio system, ensuring that every detail is heard with clarity and precision.
Specification:
NominaPower Handling: 100W
Nominal impedance Znom: 4 Ohms
DC resistance Re: 3.3 Ohms
Resonance frequency fs: 315 Hz
Effective piston area Sd: 45 cm²
Recommended frequency range: 400–6000 Hz
Voice coil diameter dc: 67 mm
Voice coil height hc: 5.5 mm
Linear excursion, peak to peak: 2.5 mm
Max. excursion, peak to peak: 5 mm
Net weight: 0.75 kg
Overall dimension: ø 104 x 59 mm
Suggested crossover cuts: HP >400Hz 18dB/octave + LP < 5000Hz 18dB/octave
