Reference 200

Reference Series 200mm mid-bass woofer

Specifications

Nominal Impedance: 4 Ohms

DC Resistance (Rdc) (Zmin): 3.1 Ohms

Sensitivity (2,83 V / 1m) : 89.4dB

Resonance Frequency (Fs) : 42dB

Frequency Response ( -6dB): 38Hz-5kHz

Voice Coil Diameter: 38mm

Qts: 0.42

Vas: 32.7 Litres

Effective Piston Area: 254.3cm2

R. Frequency Response: 42Hz - 3kHz

Crossover from (2-way filter 12dB/Oct.) : 2.2kHz

Power Handling, long term: 80 Watts

Power Handling, short term: 100 Watts

Total Weight: 1.86kg

Installing Depth: 58.5mm

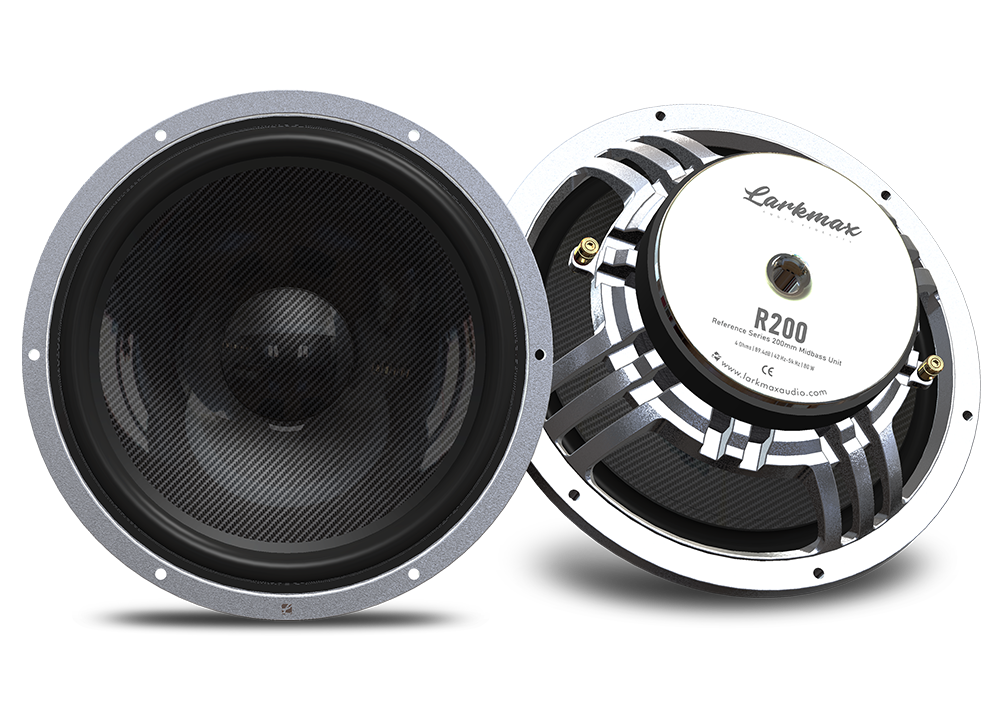

The Larkmax Audio R 200 is an efficient 20 cm / 8" woofer-speaker. Versatile, it is used in 2- and 3-way systems. It is further characterized by a high efficiency, so that it can also be operated with small amplifier power.

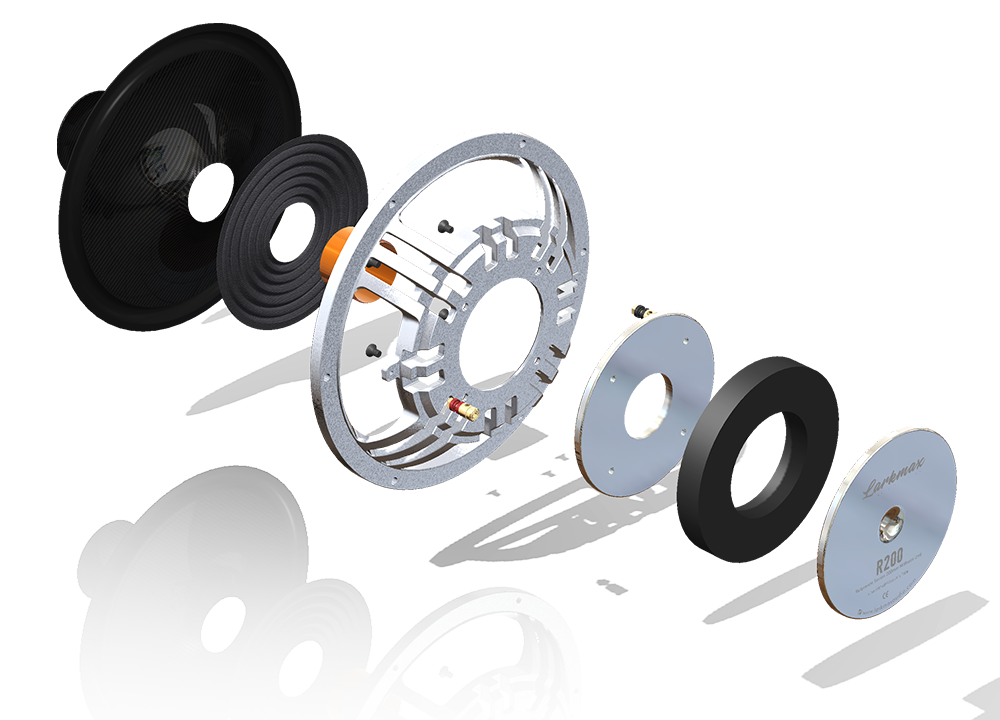

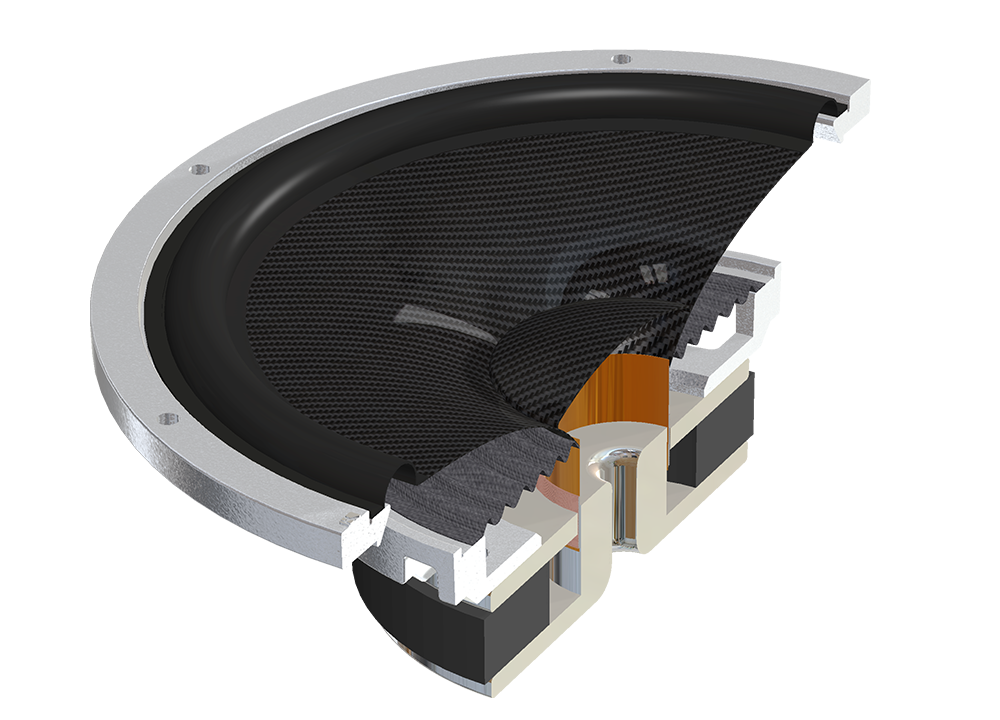

The Reference 200 speakers were precisely engineered with sound quality and power handling in mind delivering a truly immersive listening experience. The speakers feature carbon fiber cones which greatly increase long term durability and a soft rubber surround which smoothes the responsiveness of the lower frequency range. Built with durability in mind, the R200 speakers feature a robust build that withstands the challenges of the car environment, ensuring longevity and consistent high-performance.

The Reference 200 incorporate a Kapton former material in their design, contributing to enhanced thermal stability and overall speaker efficiency. Enjoy reliable and optimized performance during extended listening sessions.

With an 8" size, Reference 200 strike a balance between powerful mid-bass performance and compatibility with a range of car models, offering versatility in upgrading your in-car audio. Crafted with a 4-ohm impedance, these speakers ensure efficient power usage and seamless integration into various car audio setups, providing flexibility in system configuration.

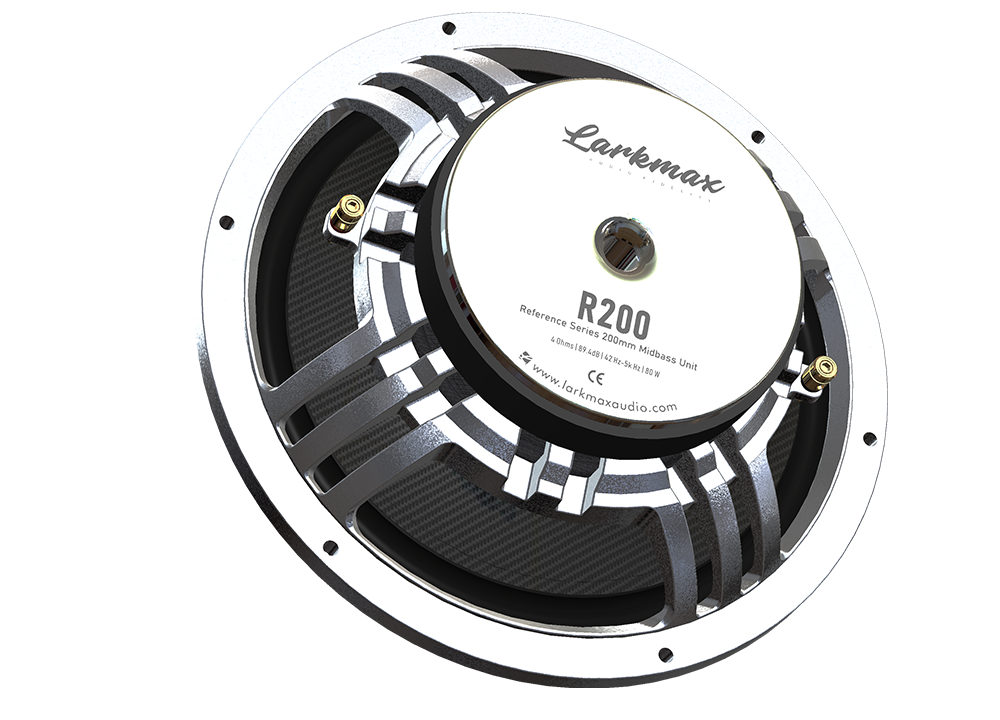

With a high flux ferrite magnet system, these speakers efficiently convert power into clear and vibrant sound. Experience every note and beat with exceptional clarity, whether you're cruising down the highway or stuck in traffic.




Specifications

Nominal Impedance: 4 Ohms

DC Resistance (Rdc) (Zmin): 3.1 Ohms

Sensitivity (2,83 V / 1m) : 89.4dB

Resonance Frequency (Fs) : 42dB

Frequency Response ( -6dB): 38Hz-5kHz

Voice Coil Diameter: 38mm

Qts: 0.42

Vas: 32.7 Litres

Effective Piston Area: 254.3cm2

R. Frequency Response: 42Hz - 3kHz

Crossover from (2-way filter 12dB/Oct.) : 2.2kHz

Power Handling, long term: 80 Watts

Power Handling, short term: 100 Watts

Total Weight: 1.86kg

Installing Depth: 58.5mm
